- Jig-built steel box section chassis
- Composite GRP body
- Steel suspension swing arms

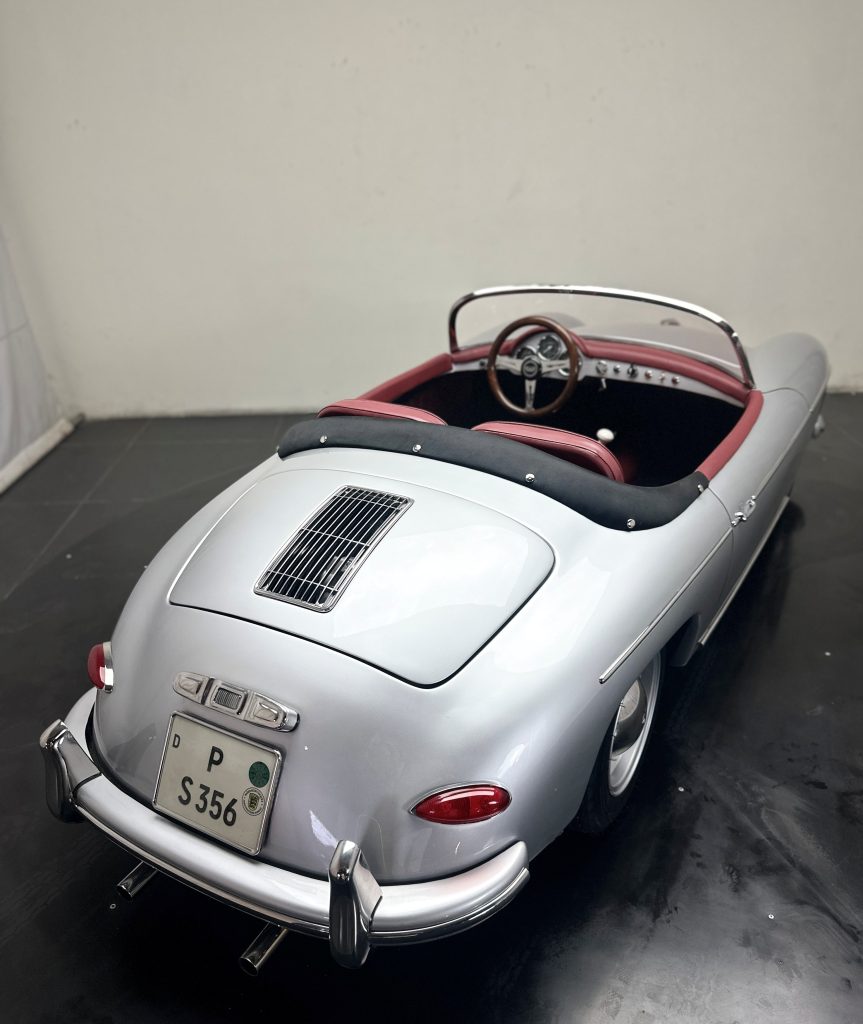

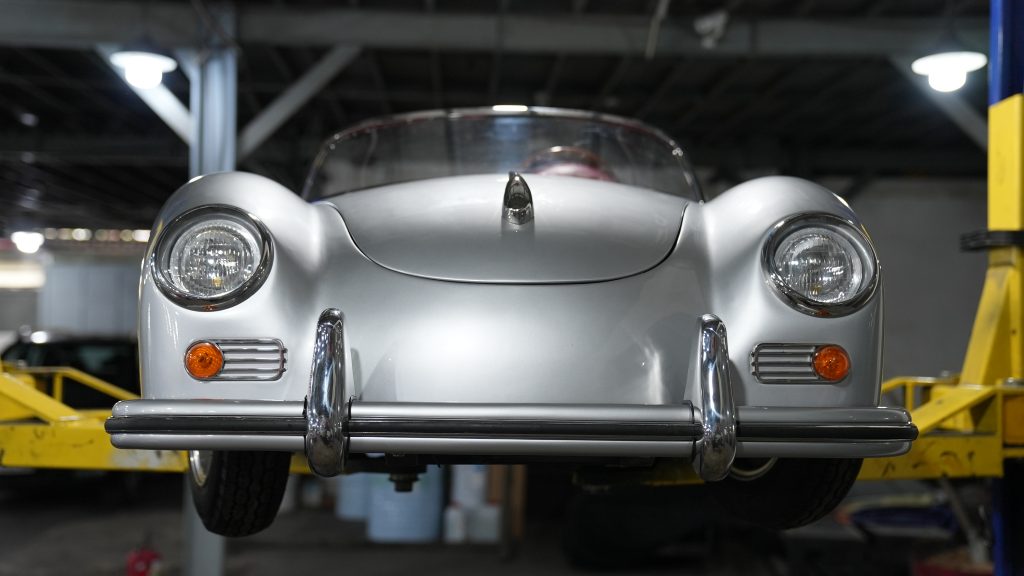

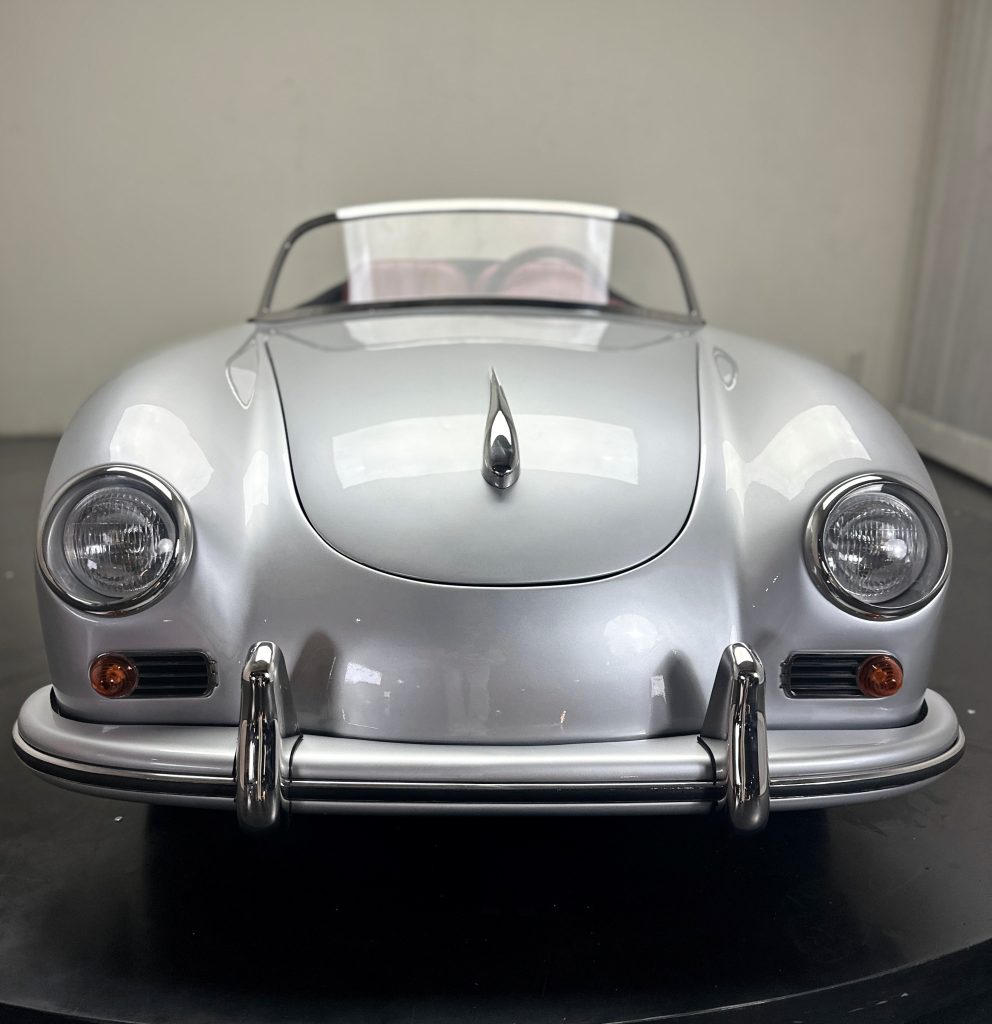

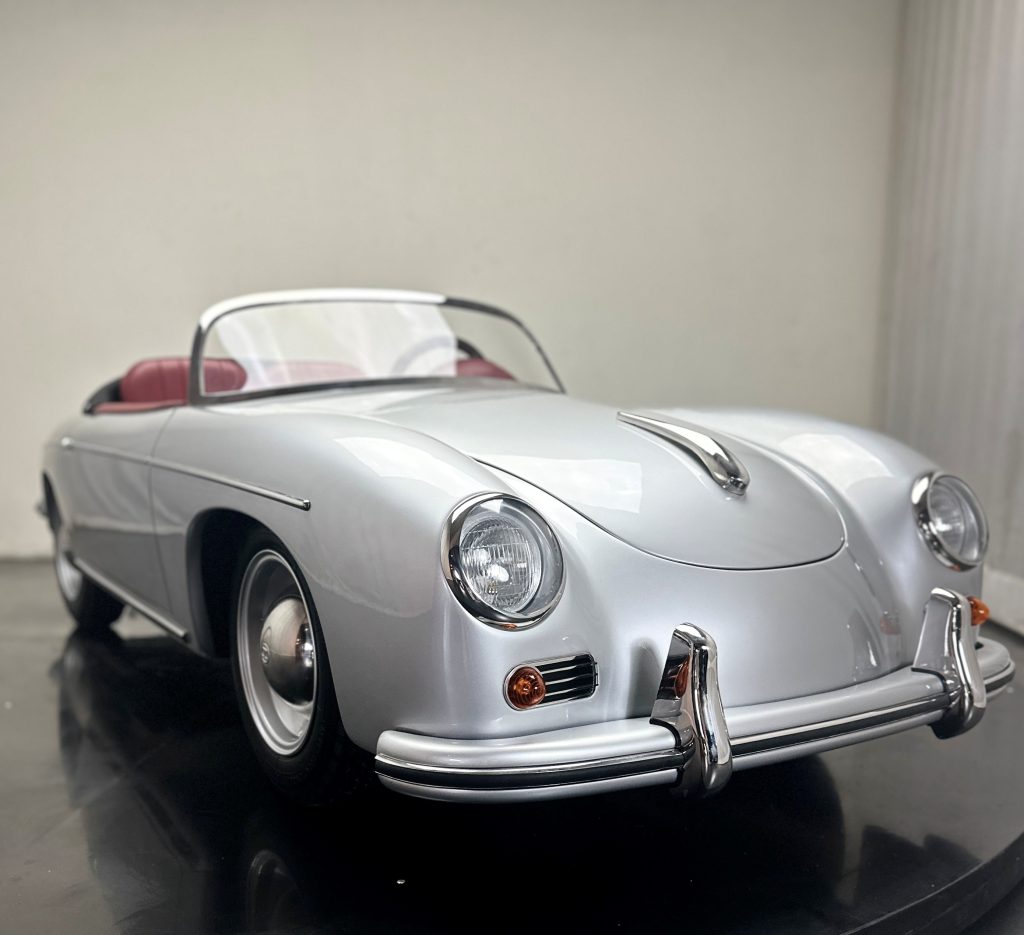

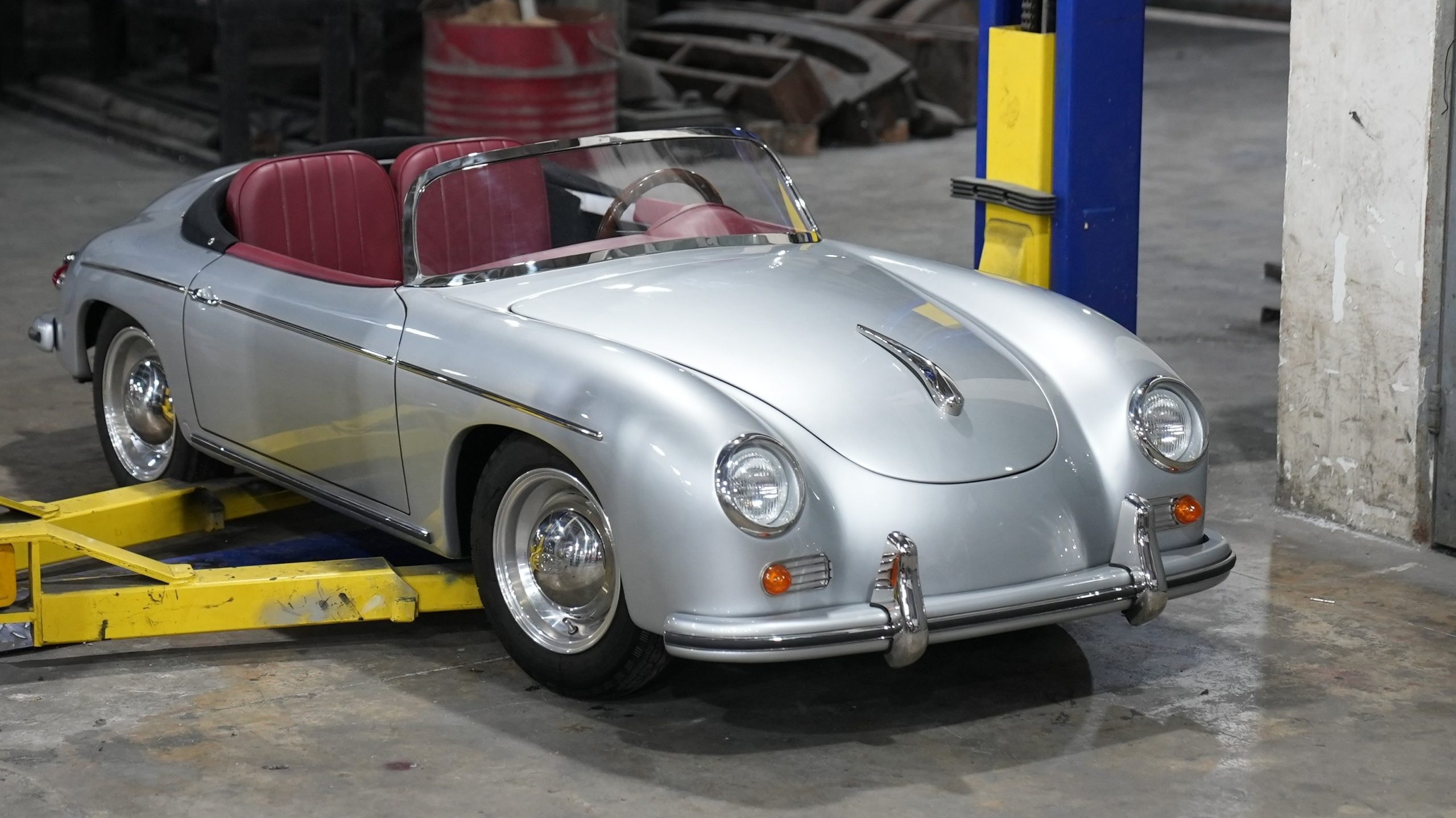

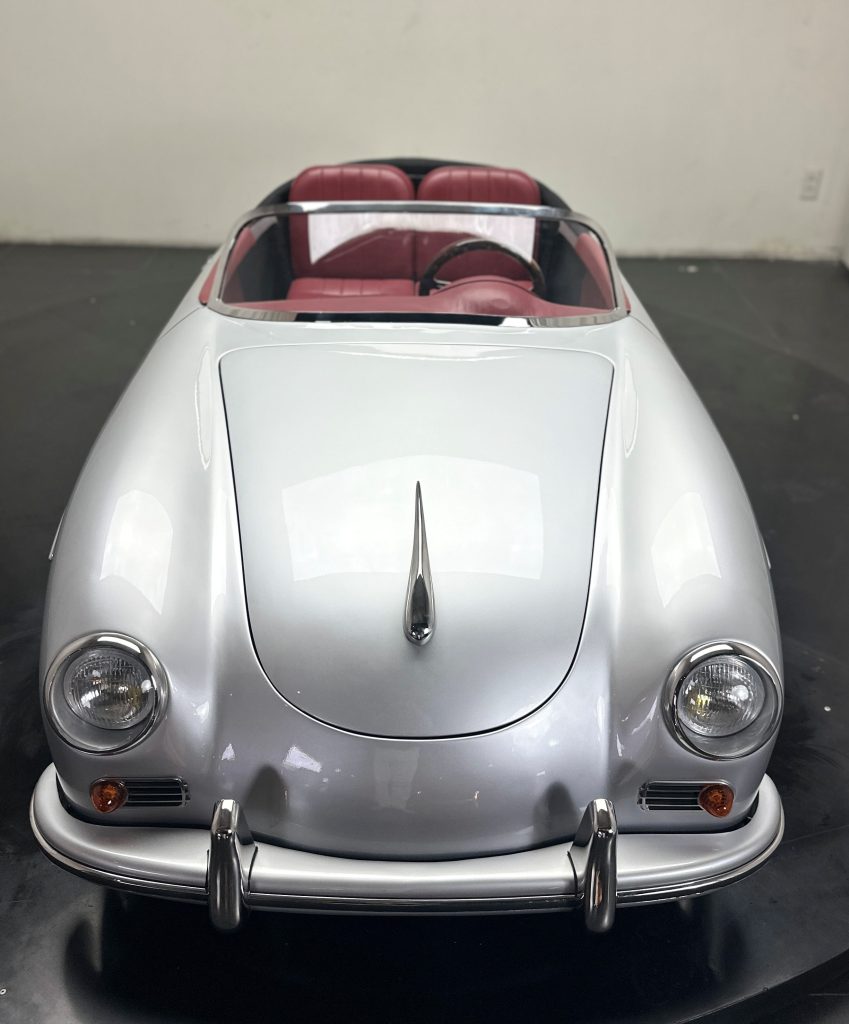

356 Junior
$20,000.00
Product Info
PETROL VERSION – 2-Seater
- Top speed 60 kmh. A speed restrictor supplied
- Loading capacity: Up to 500kg – 2 seats for all driver sizes
Construction
System Specification

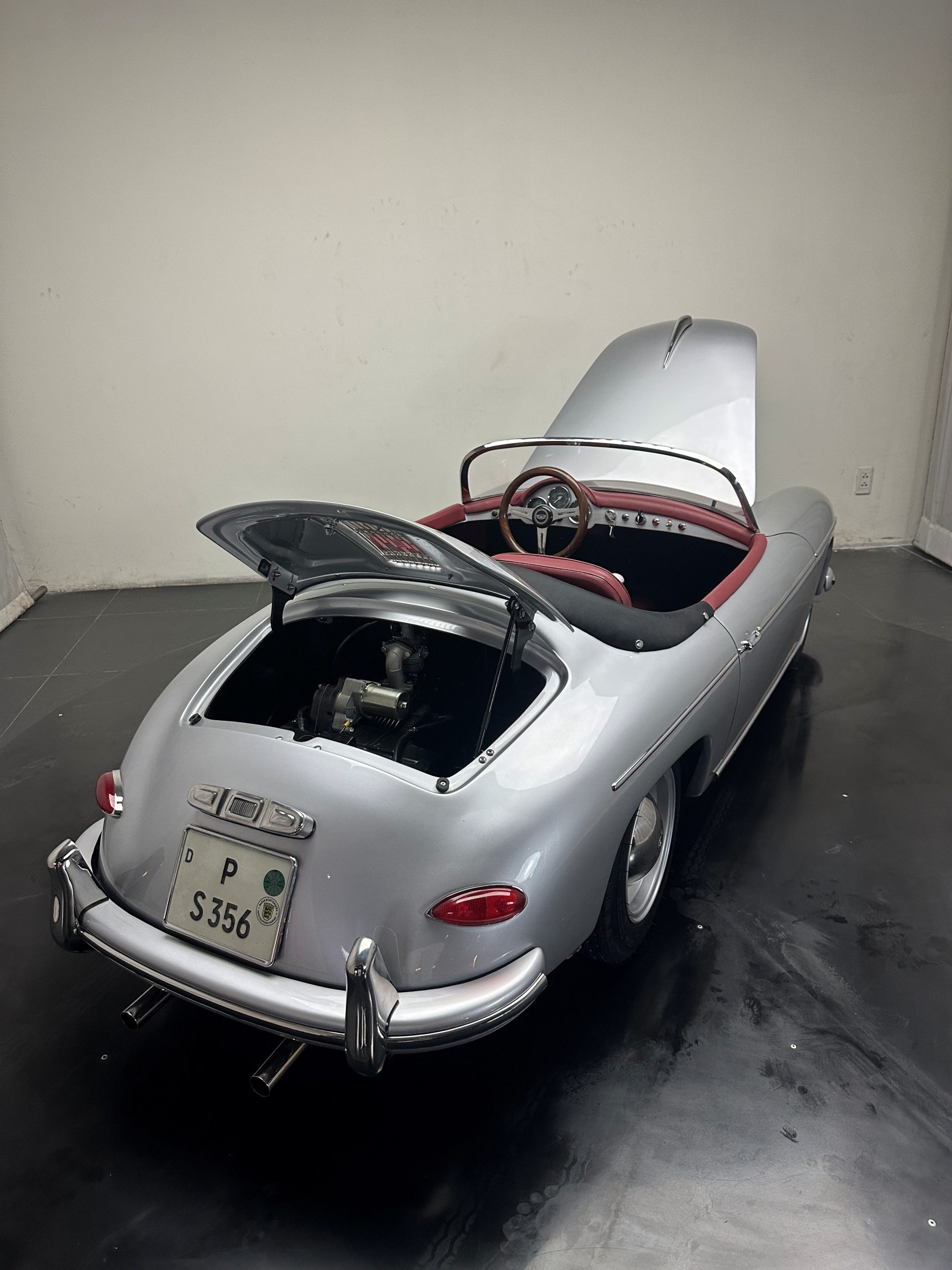

- Engine: 125cc rear mounted engine – rear wheel drive.
- Transmission: 3 speed semi-automatic gearbox + reverse (no clutch. Sequential gear change).
- Output sprocket to right angle gearbox connecting to open differential.
- Electric fan, rubber donuts / engine mounts for smooth operation.
- 2.5L fuel tank for 5 hours range
- Working lights, horn, electric starter key and indicators: 12 Volt.
Steering, brake & suspension
- Fully independent suspension, adjustable gas shock absorbers.
- Double wishbones at each corner
- Vented disks with dual pot callipers and a hydraulic split braking system.
- Rack-and-pinion steering.
Body, Interior & Trim

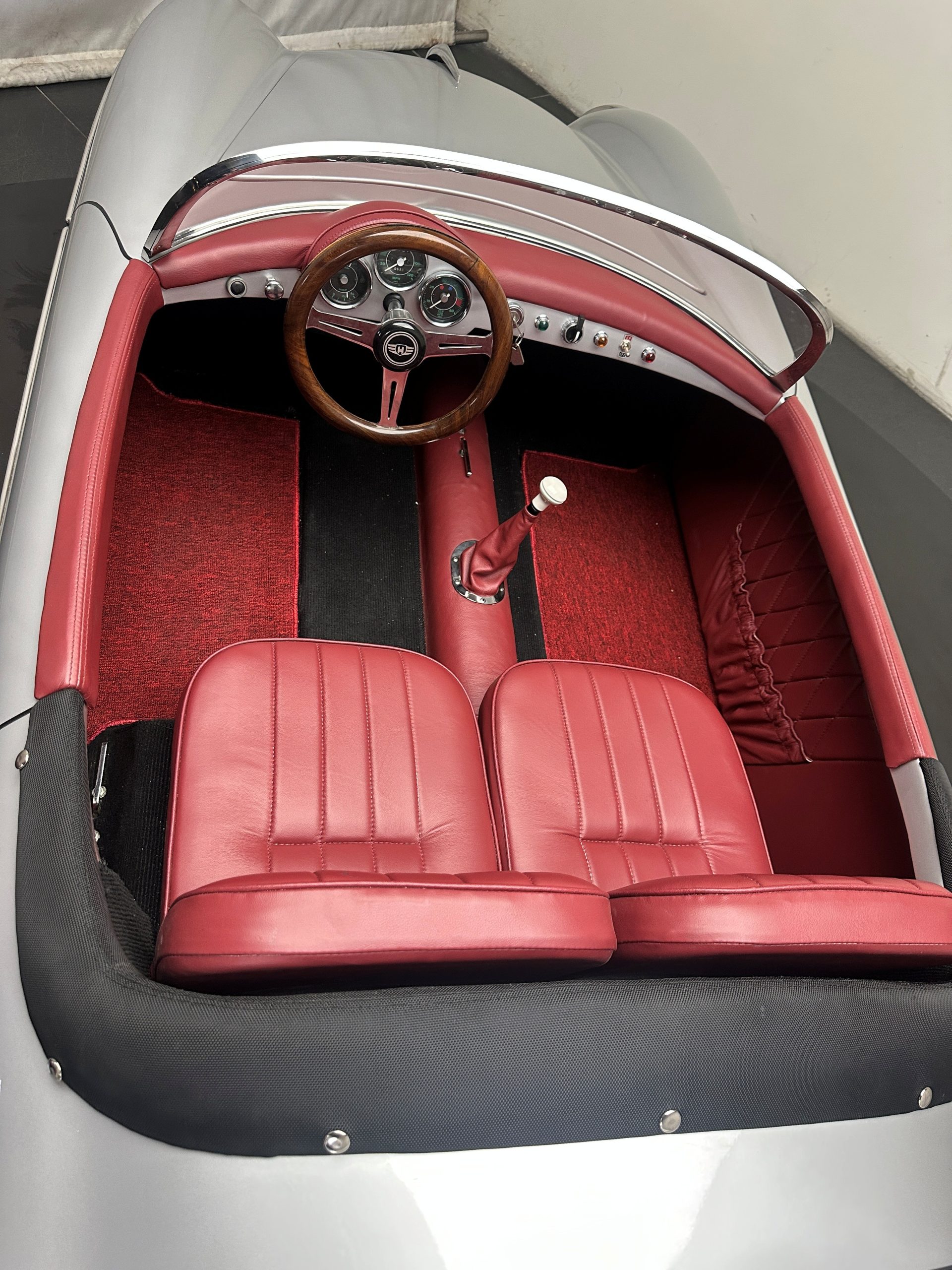

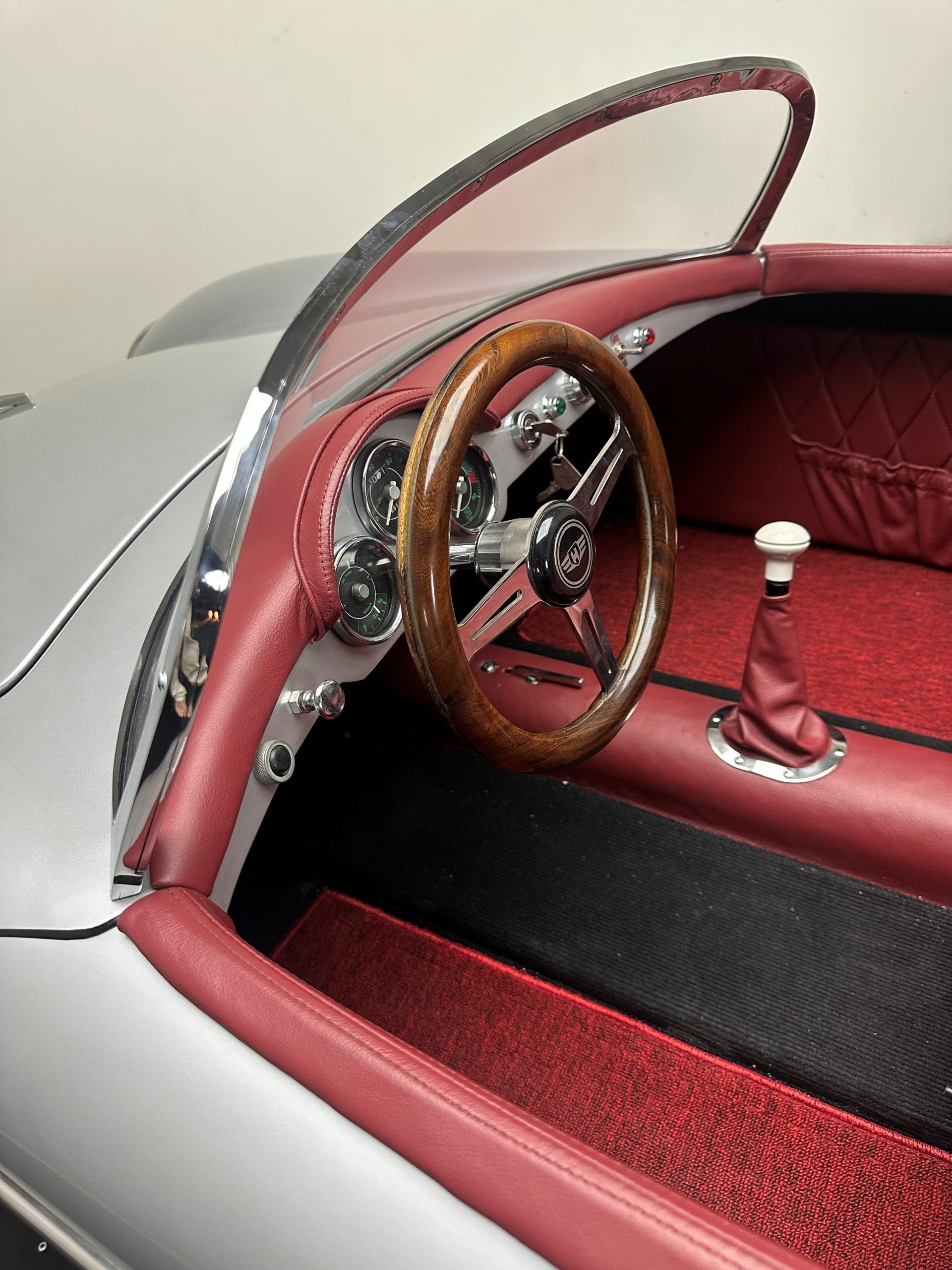

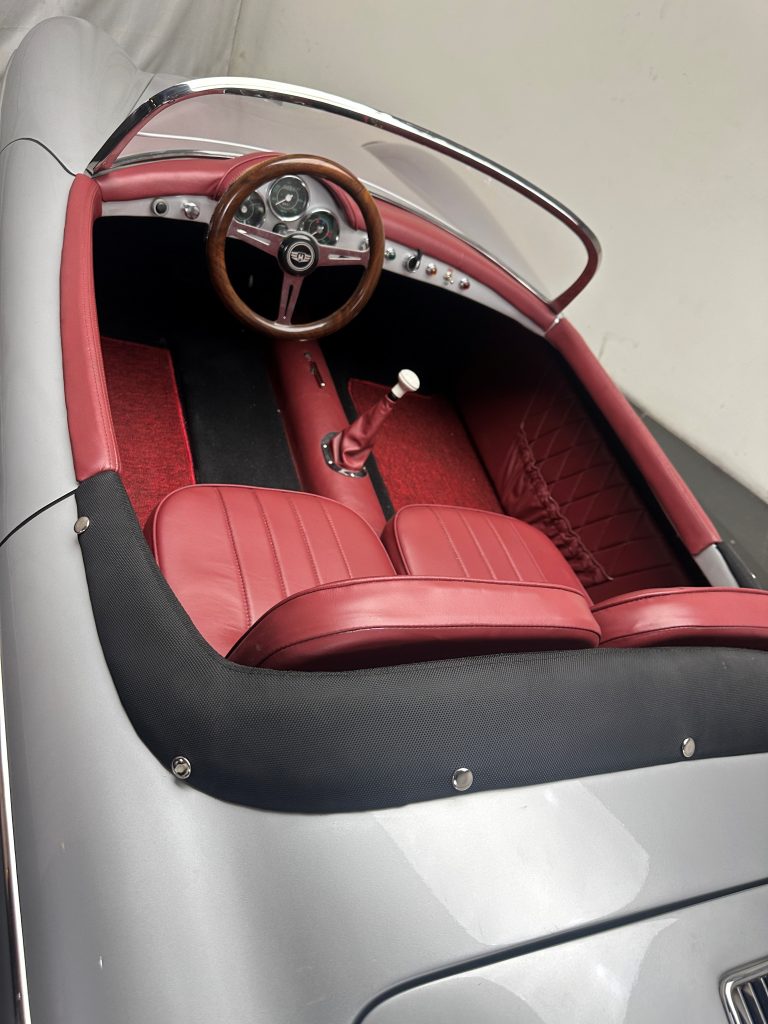

- Meticulously detailed full-leather interior with accurate dashboard and working dials. Features twin seats and fully fitted carpeting throughout.
Measurements
Length:2670mm.
Width: 1060mm.
Height: 770mm.
Dry weight: 230kg.
2/3rd scale
